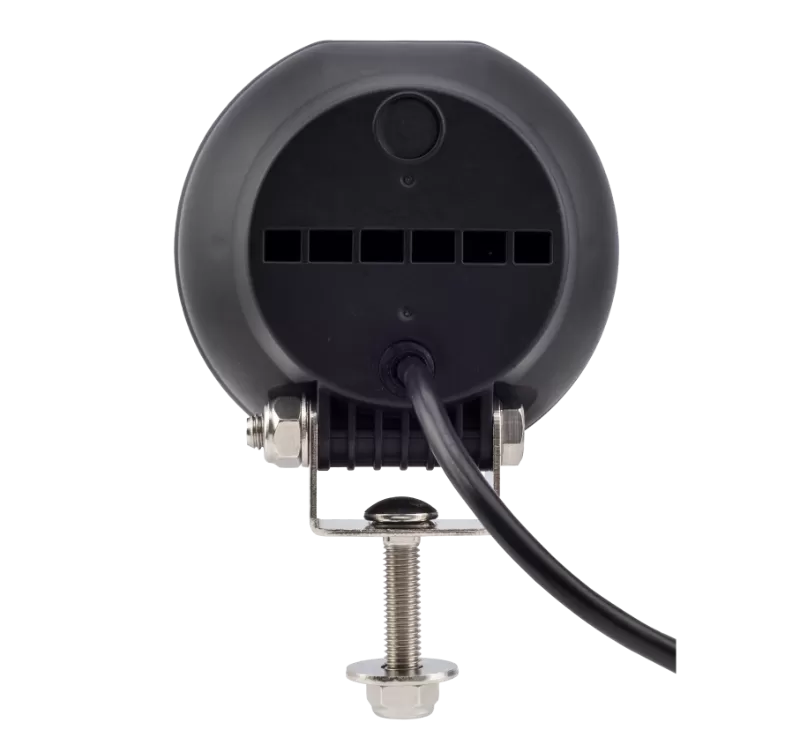

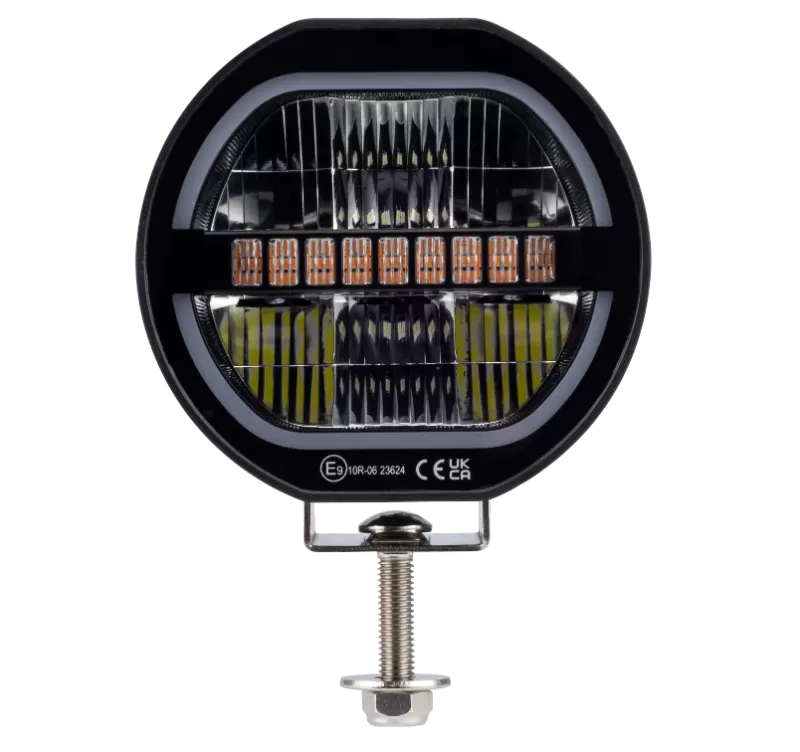

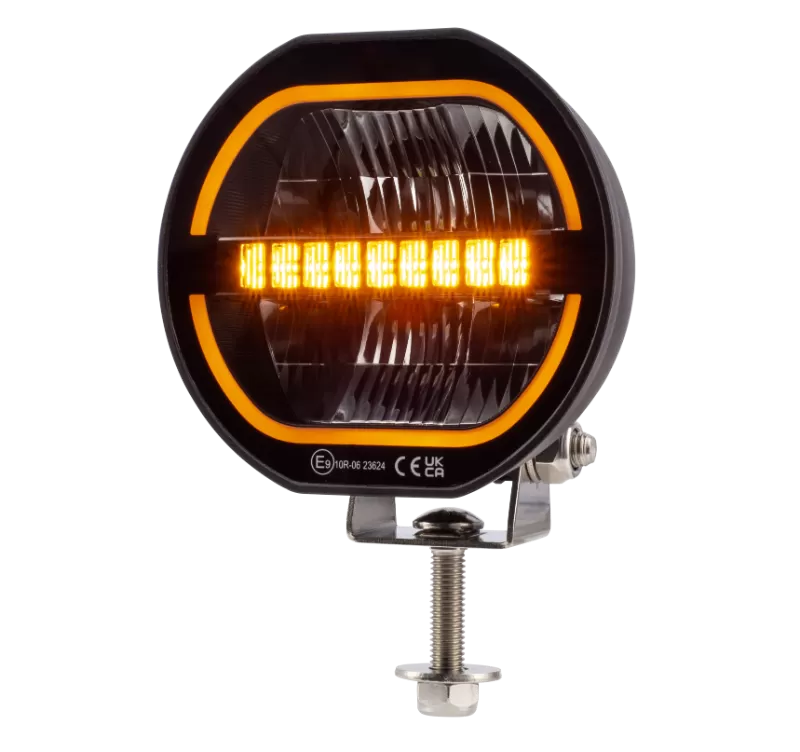

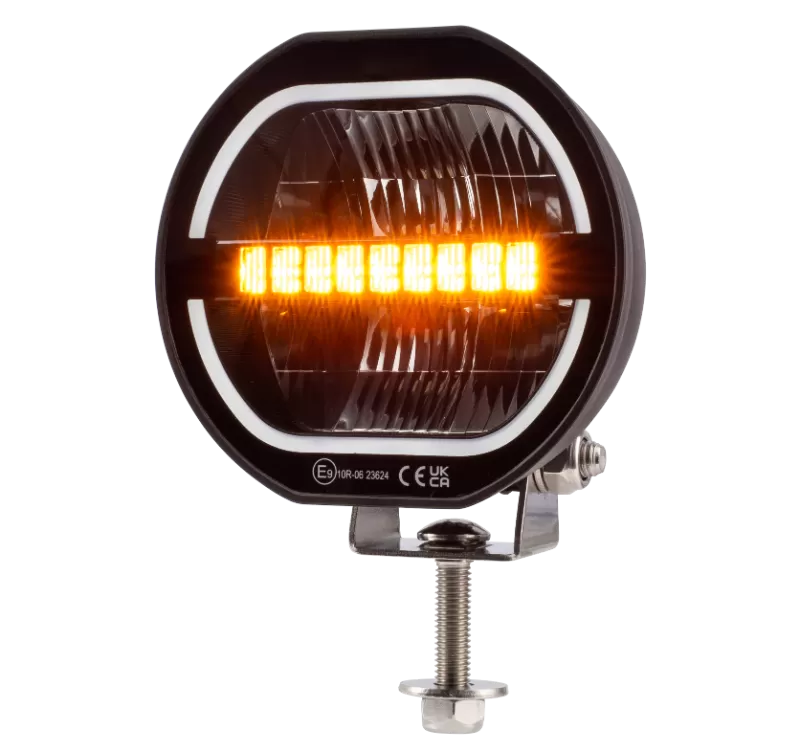

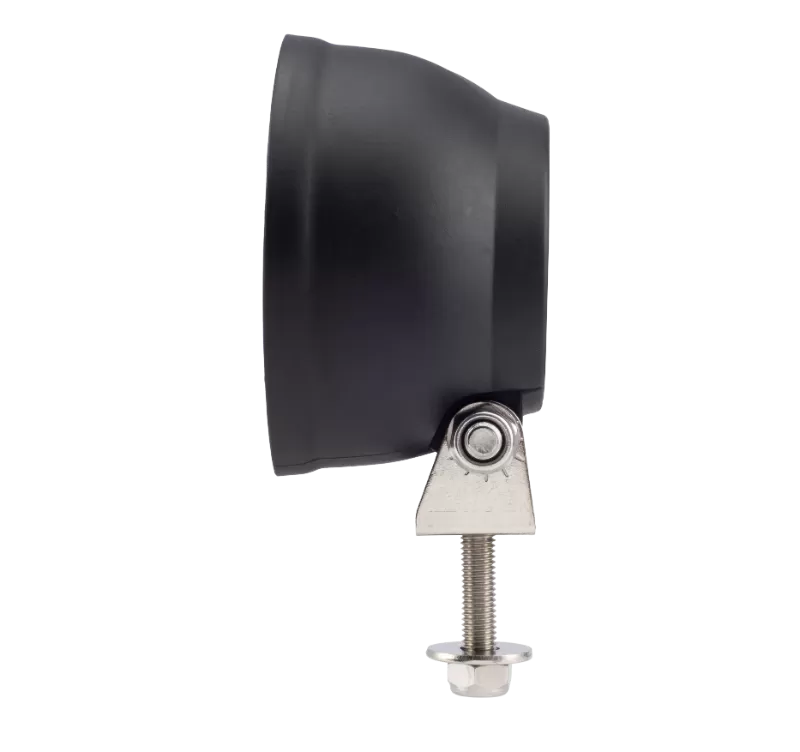

E1104-5” oval thermal plastic, graphene
Model: E1104-1 (5 inch)
Functions: HB / Strobe / P
Raw Power of LED: High beam: 33 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length: 40 cm
Material bracket: Steel powder coated black
Model: E1104-1 (5 inch)
Functions: HB / Strobe / P
Raw Power of LED: High beam: 33 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length: 40 cm
Material bracket: Steel powder coated black
| Model: | E1104-1（5 inch） | Connection: | Cable |
| Functions: | HB / Strobe/ P | Cable length (mm) | 40cm |
| Raw Power of LED: | High beam:33 WWhite Position:4WYellow Position:3WStrobe: 18W | Material bracket | Steel powder coated black |
| Voltage: | 10-30V | Material housing/chassi | Thermal plastic |
| Consumption (w) 12V | High beam:30WWhite Position:3WYellow Position:3WStrobe: 15W | Lens Material | PC |
| Consumption (w) 24V | High beam: 30WWhite Position:3WYellow Position:3WStrobe: 15W | Length (mm) | 126.4 |
| Theoretical (Raw) lumen | High beam:4650 LM | Depth (mm) | 128.9/120/132 |
| Actual (Effective) lumen | High beam:2300LM | Height (mm) | 78/85/78 |
| illumination range, 1 LUX @ m: | 225 | Size of bottom bracket (mm) | 8.9/7/12 |
| Color temperature: | High beam:5700-6500KWhite Position:5700-6500KYellow Position:2000-2200KStrobe: | Operating temperature | -40°C - +50°C |
| IP Rate: | ip69k | ADR-approved | None |
| Colour housing B: | Black | Emark-approved | R65,R10,R148,R149 |
| Colour lens: | Transparent | Homologations | R148/R149/R65 |
| Colour LED´s: | White /Amber | Ref. for HB | 12.5 |
| Beam pattern: | HB, Position, Strobe | EMC（certificate） | ECE R10 |
| Position light: | YES | EMC level | CISPR 25 Class 5 |
Model: E1102-1 (9 inch)
Functions: HB / Strobe / P
Raw Power of LED: High Beam: 113 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length (mm): 40 cm
Material bracket: Steel powder coated black
了解更多
Model: E1103-1 (7 inch)
Functions: HB / Strobe / P
Raw Power of LED: High beam: 66 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length (mm): 40 cm
Material bracket: Steel powder coated black
