Model: | E2117 |
| Functions, Homologation | |
| Beam Pattern: | High Beam |
| Homologations: | ECE R112,DOT FMVSS 108 |
| Optical & Electric Features | |
| LED Type: | 1pcs 20W LED(s); |
| Emitting Color: | White or Amber (Optional) |
| Color Temp: | 5700K |
| Raw Lumen: | 1350LM |
| Raw Power: | 20W |
| Electromagnetic Features | |
| EMC Grade: | ECE R10 |
| Operating Voltage: | 10V~30V |
| Connector: | DT / AMP/ Cable (Optional) |
| Mechanical Features | |

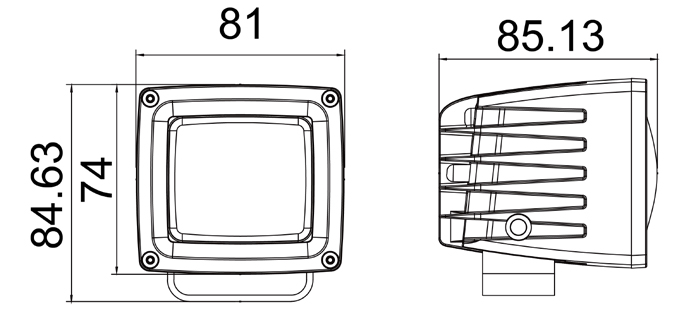

| Size: | 81X84.6X85mm |
| Housing Material: | Aluminium Alloy |
| Lens Material: | Anti-UV PC |
| Lens Processing: | Surface Hardened. |
| PC Brand: | COVESTRO 2407 |
| Bracket Material: | Stainless Steel |
| IP Rate: | IP66, IP6K9K |
| Work Temp: | -40~+50°C |
| So this is Life | |
| Life Time: | >30,000H |
Functions: HB / Strobe / P
Raw Power of LED: High beam: 33 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length: 40 cm
Material bracket: Steel powder coated black
了解更多
Model: E1103-1 (7 inch)
Functions: HB / Strobe / P
Raw Power of LED: High beam: 66 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length (mm): 40 cm
Material bracket: Steel powder coated black
了解更多
Model: E1102-1 (9 inch)
Functions: HB / Strobe / P
Raw Power of LED: High Beam: 113 W White, Position: 4 W Yellow, Strobe: 18 W
Connection: Cable
Cable length (mm): 40 cm
Material bracket: Steel powder coated black
了解更多
